Technical Parameters

Width: 191 – 500 cm
Projection: 150, 200, 250, 300, 350 cm

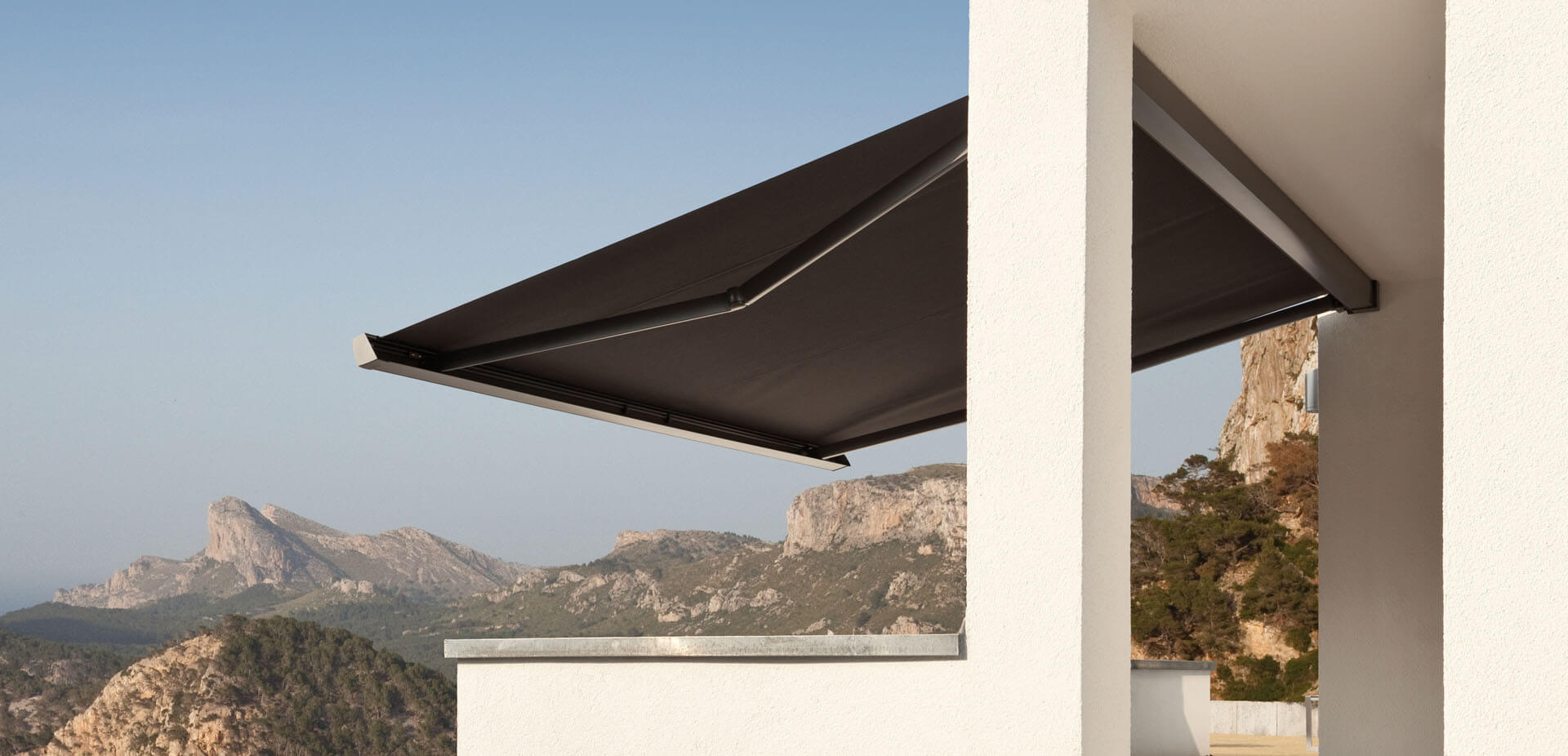

  • Innovative articulated awning in slim design with one-piece aluminium cassette and matching front profile for year-round protection of fabric and mechanism from the weather

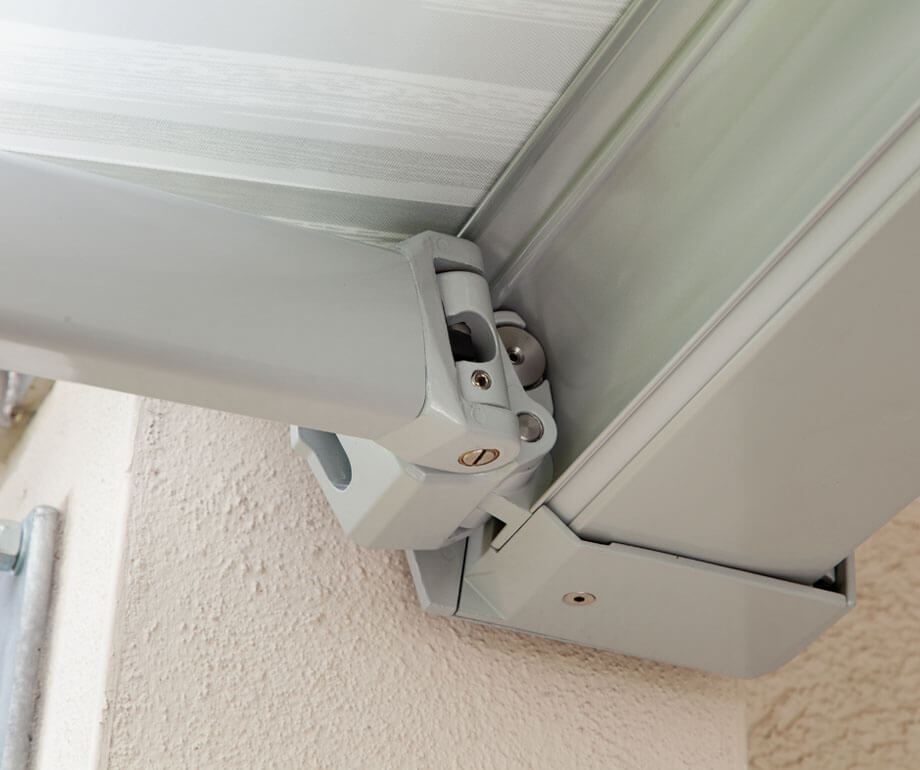

  • Fabric shaft made of zinc-plated sheet steel (diameter 78mm) plus side bearings with integrated pivot joint inclusive of top lock mechanism
  • Angle of slope can be set via adjuster bolt up to 40°

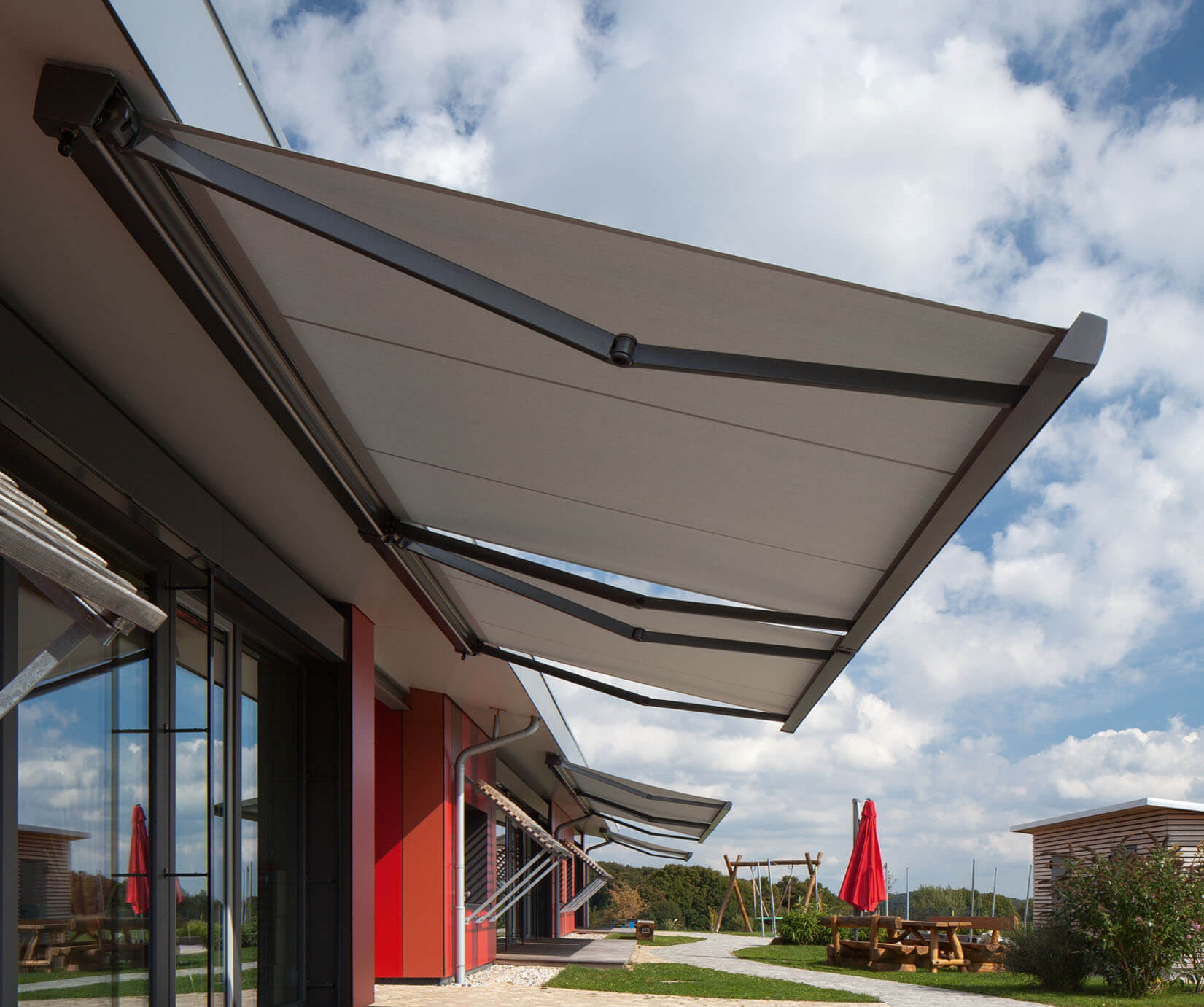

  • Crossed articulated arms, power transferred via hinge strap.
  • Mounted via the side bearings for individual alignment

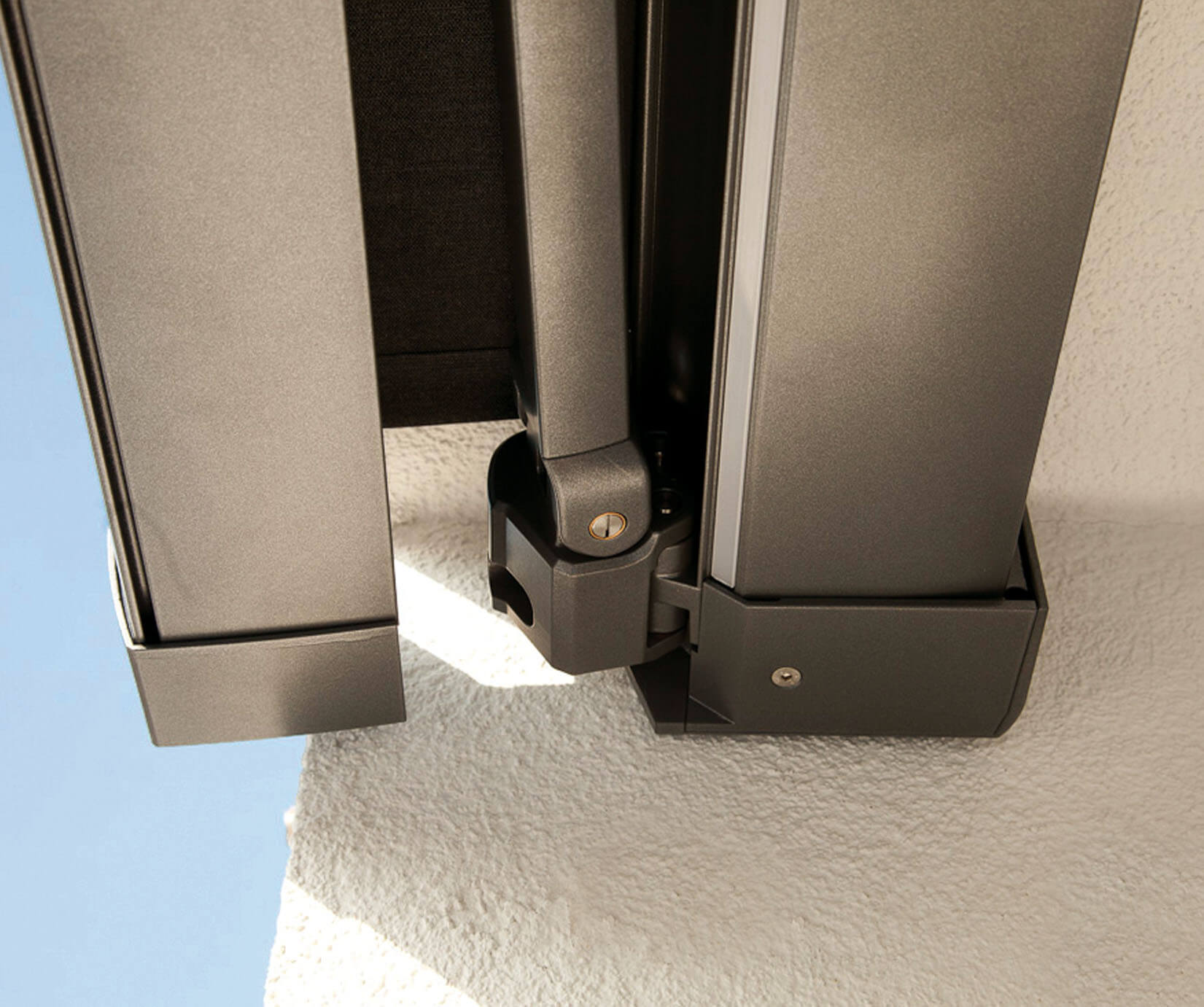

  • Awning is pushed from below into the side cover and secured via a special spring element and concealed screws
  • All visible aluminium parts powder coated in standard colours:
  • silver (RAL 9006), and anthracite (DB 703)
  • Optional: other RAL-based colours
  • Warranty – 5 years
