R 120 Zip.

Technical Parameters

Cassette dimensions: 120 mm wide, 125 mm high
Maximum dimensions: 5000x3000
Self-supporting option: width 3.5 m, height 4.0 m

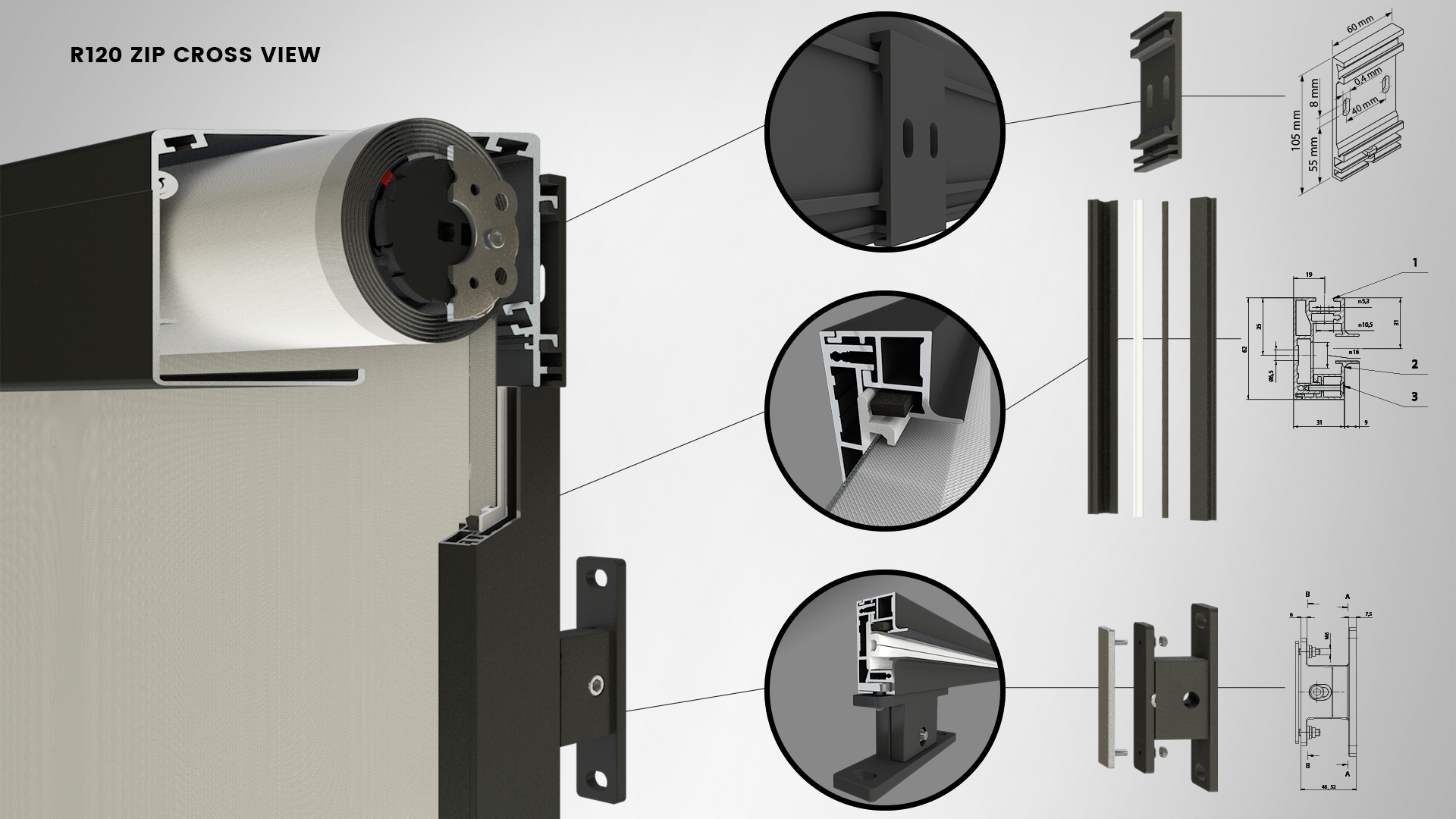

The R 120 Zip is the first external screen in the world that is truly wind tight. Thanks to an ingenious zip system, the fabric is wind tight in every position and can be insect-proof in the closed position. It is a simple principle by which the sun-protecting fabric has a special trim with a symmetrical zip which holds the entire structure firmly in the two side channels. R120 zip, the technological performer in terms of comfort and ease of use, can be used in residential, offices and project buildings. The extensive range of colours of the fabrics and the profiles ensures that the R120ZIP is in perfect harmony with the architecture of your home or company, which automatically leads to a pleasant living and working environment. All materials used for the R120ZIP are 100% corrosion-proof. Only stainless-steel screws have been used.

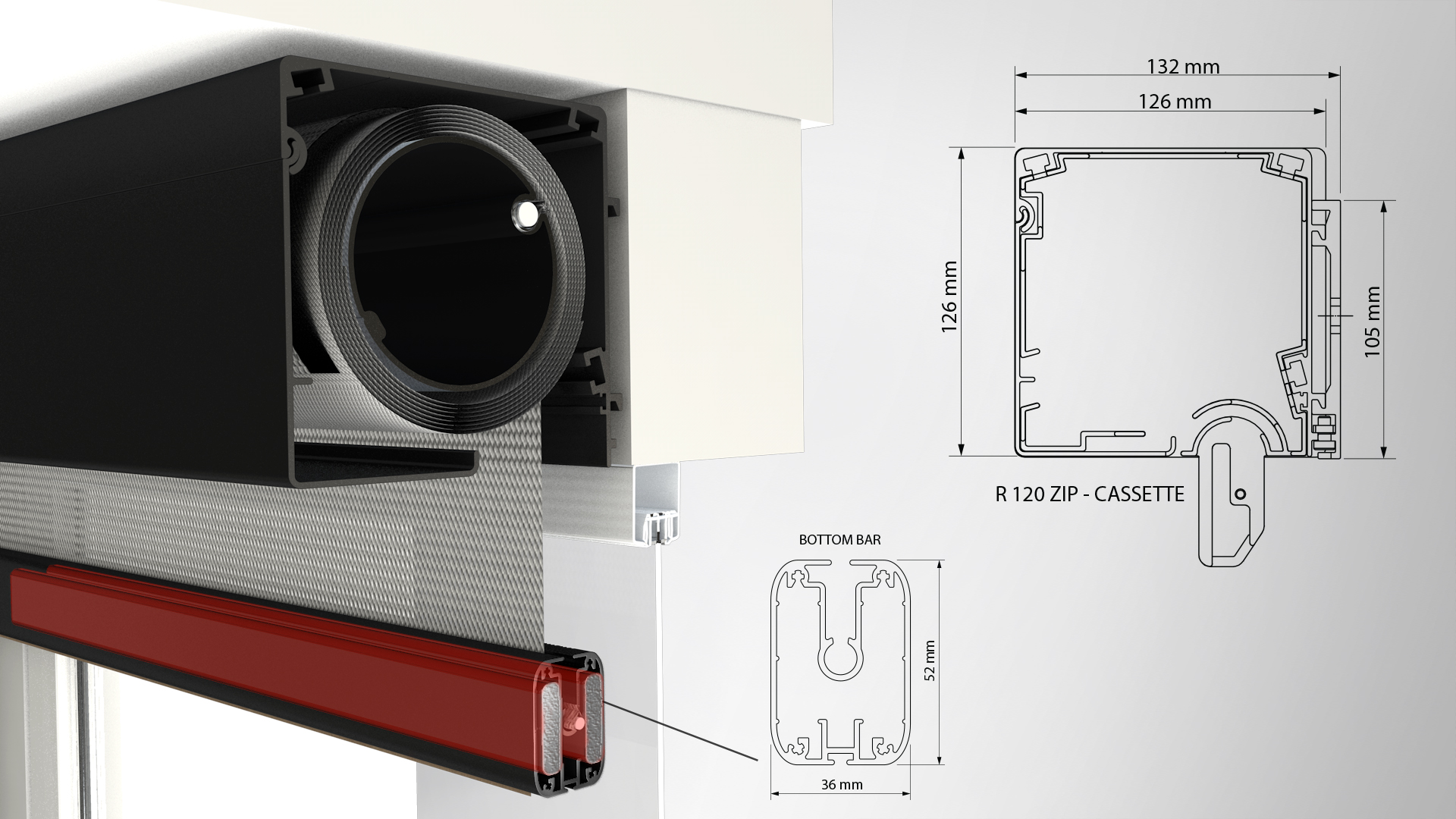

  • Cassette dedicated for concealed installation made of aluminium sheet. The cassette has an extension that enables putting plaster on it. (Option: 1)
  • Cassette dedicated for niche and facade installation made of extruded aluminium. (Option: 2)

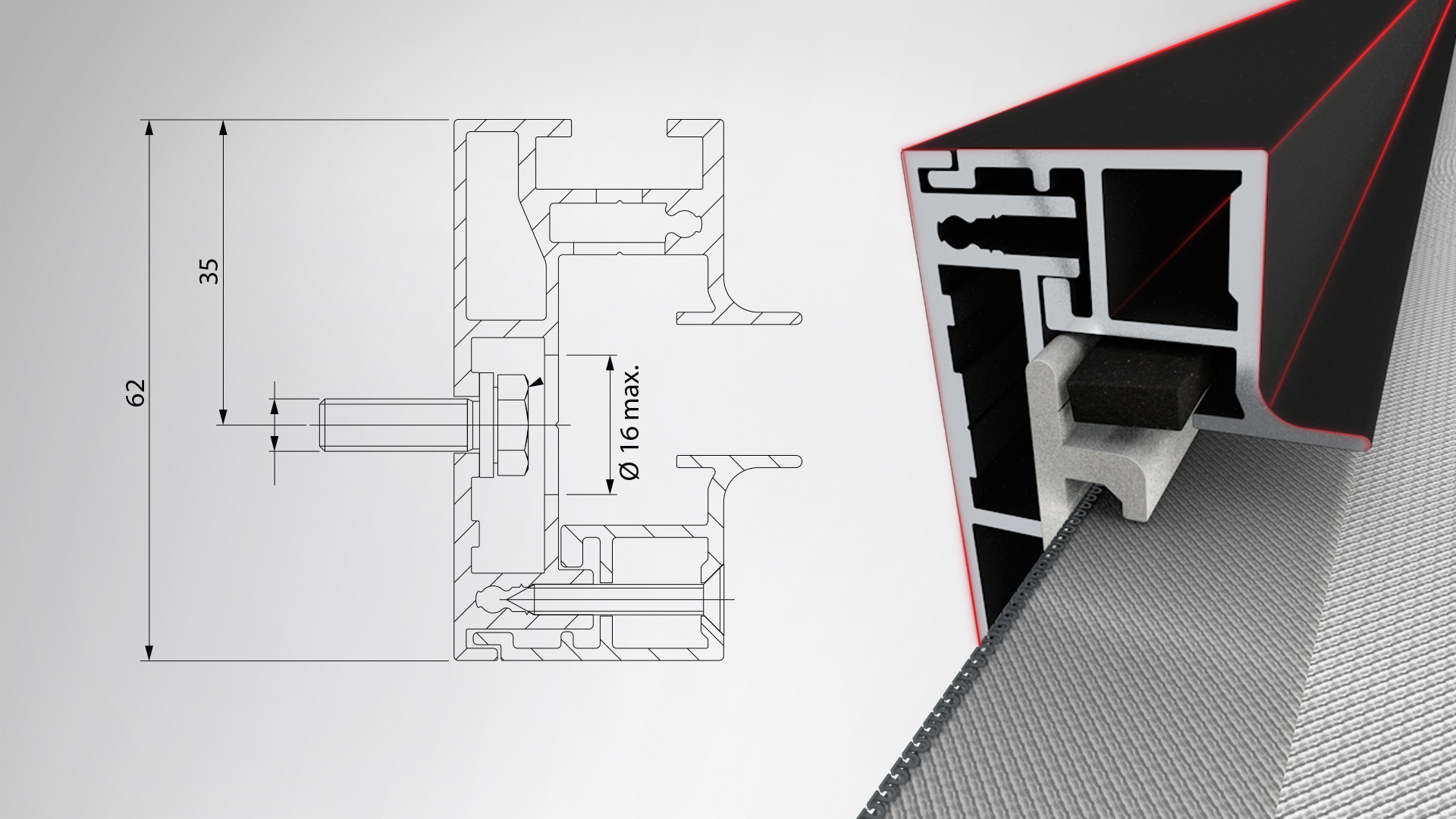

  • Extruded aluminium side guides
  • Maximum Dimensions: 5000 x 3000
  • Cable guides possible
  • Wide range of fabrics
  • Electrical drive or manual

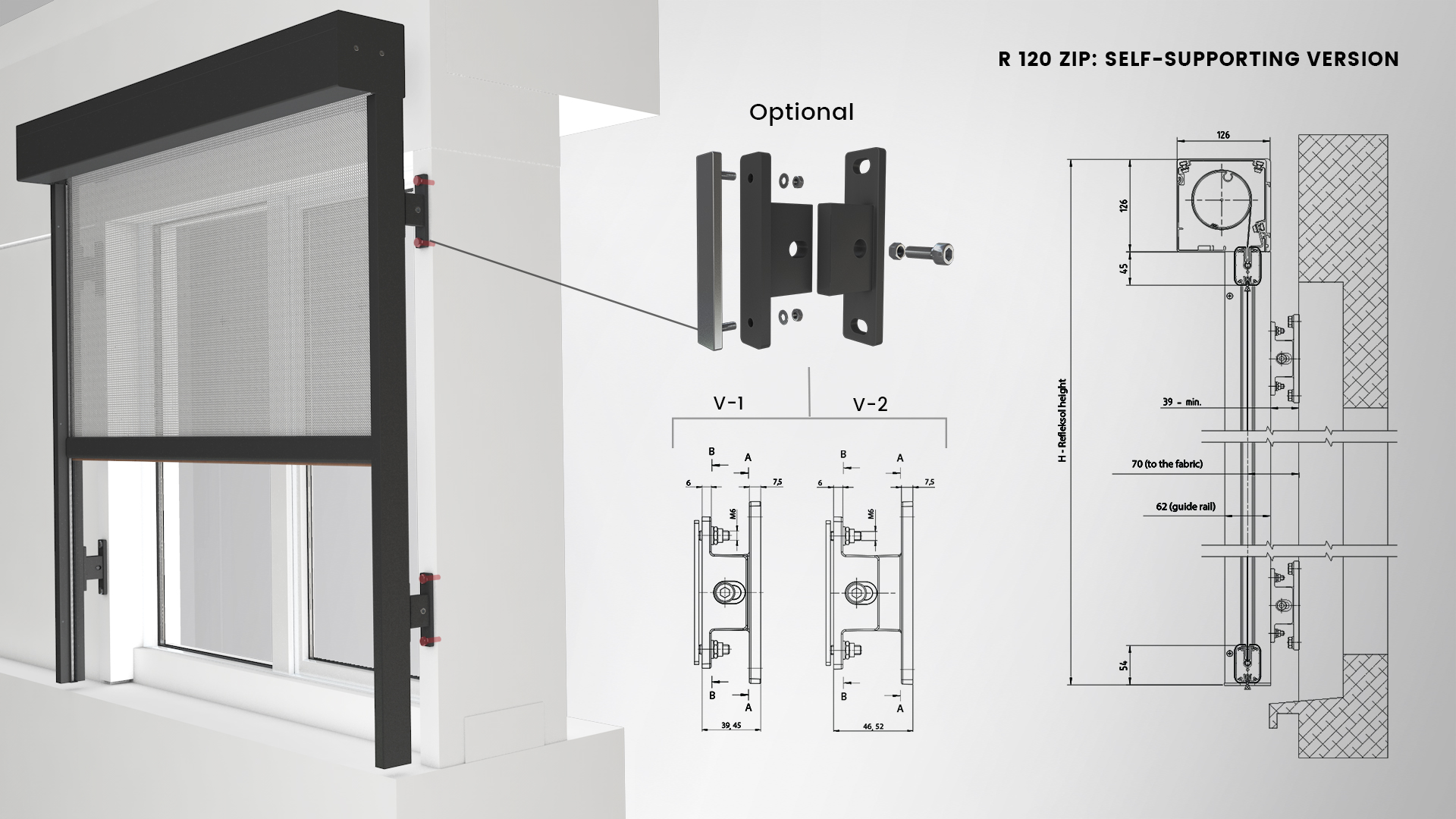

  • Self-supporting option available
  • Available colors: silver (RAL 9006) and anthracite (DB 703)
  • Other color per request
  • Warranty – 5 years
